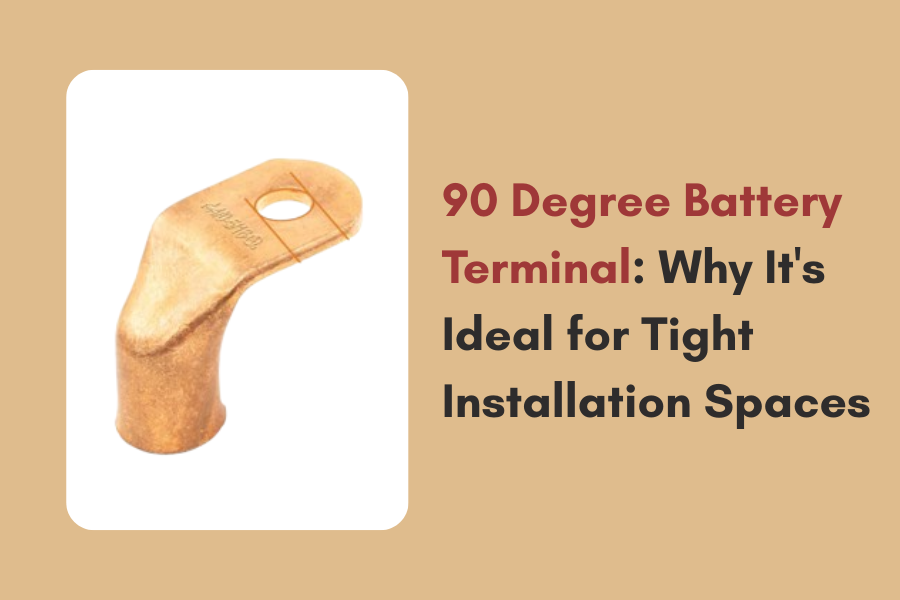

Cramped engine bays don’t forgive straight lugs. When there’s no room to route a cable cleanly, a 90 degree battery terminal is the answer — not a workaround, a proper fix.
When Straight Just Doesn’t Fit
In a standard engine bay with breathing room, a straight lug works fine. But squeeze into an RV compartment, a marine battery box, or a custom truck build — and suddenly that straight terminal is creating a kink nobody asked for.
Seen it: A 4/0 cable bent at a sharp angle right off the terminal. Jacket cracked inside six months. The conductor stayed intact but the insulation damage meant a full redo.
A 90 degree battery terminal adapter solves this before it starts. The bend is built into the lug, not forced into the cable. That’s the difference between a clean install and a liability.
The Physics Are Simple
Copper has a minimum bend radius. Push past it and strands fatigue. Do it under vibration — think diesel engine, potholed highway, offshore chop — and you’re accelerating that failure on a timeline nobody can predict.
A 90 degree lug takes the bend load off the cable entirely. The angle sits in the terminal body, not the conductor. Here’s what that means in real terms:
- No stress concentration at the lug barrel
- Cable exits parallel to the battery face, not fighting gravity
- Vibration loads distribute across the crimp, not the cable jacket
- Cleaner routing means shorter cable runs, which cuts voltage drop
Simple physics. Real-world outcome.
Where These Lugs Actually Get Used
90 degree battery lugs aren’t a niche product. They show up constantly in builds where space is the enemy.
- RV and camper van builds — Battery banks often sit under bench seats or in slide-out compartments. Cables need to exit sideways, not straight down or up.
- Marine applications — Battery boxes in tight bilge spaces, where a straight terminal hits the box lid before you can torque the bolt.
- Solar storage systems — Lithium battery banks with top-post terminals mounted flush against a wall panel. Straight lugs either hit the wall or force a U-bend in the cable.
- Custom truck and overland rigs — Aux battery setups wedged into cargo areas where every millimeter matters.
In all of these, a 90 degree battery terminal adapter isn’t a luxury. It’s the only thing that makes the installation geometry work.
Why 2/0 and 4/0 Need This More Than Smaller Gauges
Thin wire bends easy. Nobody’s fighting a 10 AWG cable into a corner. But 2/0 and 4/0 are a different animal.
A 2/0 90 degree lug handles the heavy-current runs — inverters, winches, high-draw loads — where the cable is stiff and doesn’t want to cooperate. Trying to manually bend 2/0 around a corner without the right terminal means one of two things: a stressed cable or a cable that won’t stay where it’s routed.
Selterm’s lineup handles this clean. The 2/0 90 degree lug is built with the right barrel diameter, the right stud hole sizing, and wall thickness that holds up under real crimping force. Run it through a hex die, pull-test it, done.
Tinned vs Bare Copper — Matters Here Too
The conductor matters as much as the bend. Tinned copper lugs resist oxidation, which is critical in high-humidity environments — boats, coastal rigs, outdoor solar installations.
Bare copper works fine in dry, sealed applications. But if there’s any moisture exposure, bare copper oxidizes at the barrel joint and resistance climbs. In a high-current circuit, that extra resistance shows up as heat.
Pro tip: Match the lug material to the environment, not just the gauge. For marine and RV builds where humidity is a given, tinned is the smarter call every time.
Crimping a 90 Degree Lug — Do It Right
The angle on the terminal changes nothing about the crimp process, but it does change the tooling setup. A few things to keep straight:
- Use the correct hex die for the gauge: The barrel doesn’t care about the bend, but the die size does
- Support the cable horizontal to the crimp axis: Let the 90 degree angle point away from the tool
- Two crimps minimum on 2/0 and above: One near the barrel mouth, one toward the conductor end
- After crimping: Pull test. 40 lbs minimum for 2/0. If it slips, redo it.
Heat shrink over the barrel after crimping. Adhesive-lined. Not tape, not standard shrink — adhesive-lined, so the glue seals the barrel entry and keeps moisture out of the crimp joint.
Voltage Drop Math Worth Knowing
Shorter cable run equals lower resistance equals less voltage drop. A 90 degree battery terminal adapter doesn’t just solve a space problem — it can actually shorten the effective run.
Here’s a rough example: A forced U-bend in a tight compartment might add 6-8 inches of cable to avoid kinking a straight lug. At 2/0 AWG carrying 150A, those extra inches don’t matter much individually. But across multiple connections in a high-current system, every unnecessary foot adds up.
Clean routing from the start means the cable goes directly where it needs to go. No extra length, no excess bends, no added resistance in the circuit.
Common Install Mistakes to Avoid
- Under-crimping — One crimp on a heavy gauge lug isn’t enough. Two minimum.
- Wrong stud size — A 90 degree lug needs to match the battery post diameter. Check the spec before ordering.
- Skipping heat shrink — The crimp joint is exposed metal. Seal it.
- Ignoring cable direction — The 90 degree angle can exit left or right depending on orientation. Know which way the cable needs to run before the crimp is permanent.
- Mixing tinned and bare copper — Galvanic issues at the connection point in wet environments.
Selterm Gets the Spec Right
Not all 90 degree lugs are built the same. Wall thickness varies. Barrel sizing varies. And a lug with thin walls won’t hold crimp geometry under load.
Selterm’s 90 degree battery lugs are machined with consistent wall thickness, correct barrel ID for the stated gauge, and clear stud hole sizing — so the fit is right before the crimp, not a guess. The 2/0 90 degree lug handles the heavy end of residential solar, marine, and RV work without drama. Selterm nails it here.
Conclusion
Tight spaces need the right hardware. A 90 degree battery cable ends routes cable cleanly, eliminates forced bends that crack jackets, and keeps voltage drop honest by shortening run paths.
For heavy-gauge work — specifically 2/0 90 degree lug applications — the right terminal makes the difference between a clean install and a rework. A 90 degree battery terminal adapter is the spec call in marine boxes, RV compartments, solar battery banks, and any build where geometry is the constraint.
90 degree battery lugs aren’t a specialty item. They’re the right tool for the job when straight doesn’t fit.
